For the given input voltage waveform Vin(t), the output voltage waveform V0(t), across the
capacitor is correctly depicted by :
A
B
C
D
2
JEE Main 2020 (Online) 5th September Evening Slot
MCQ (Single Correct Answer)
+4
-1
A parallel plate capacitor has plate of length
'l', width ‘w’ and separation of plates is ‘d’. It
is connected to a battery of emf V. A dielectric
slab of the same thickness ‘d’ and of dielectric
constant k = 4 is being inserted between the
plates of the capacitor. At what length of the
slab inside plates, will the energy stored in the
capacitor be two times the initial energy
stored?
A
$${l \over 4}$$
B
$${l \over 2}$$
C
$${{2l} \over 3}$$
D
$${l \over 3}$$
3
JEE Main 2020 (Online) 5th September Evening Slot
MCQ (Single Correct Answer)
+4
-1

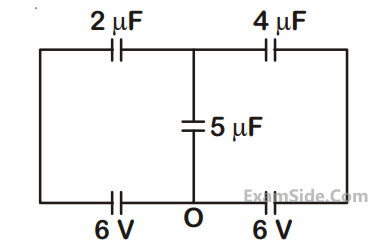

In the circuit shown, charge on the 5 $$\mu $$F
capacitor is :
A
5.45 $$\mu $$C
B
18.00 $$\mu $$C
C
10.90 $$\mu $$C
D
16.36 $$\mu $$C
4
JEE Main 2020 (Online) 5th September Morning Slot
MCQ (Single Correct Answer)
+4
-1
Two capacitors of capacitances C and 2C are
charged to potential differences V and 2V,
respectively. These are then connected in
parallel in such a manner that the positive
terminal of one is connected to the negative
terminal of the other. The final energy of this
configuration is :
