1
COMEDK 2025 Evening Shift
MCQ (Single Correct Answer)
+1
-0
The instantaneous values of alternating current and voltages in a circuit are $\mathrm{I}=\frac{3}{\sqrt{2}} \sin (200 \pi t)$ ampere and $\mathrm{V}=\frac{3}{\sqrt{2}} \sin \left(200 \pi t+\frac{\pi}{6}\right)$ volt. What is the average power consumed in the circuit in watt ?
A
$\frac{\sqrt{3}}{8}$
B
$\frac{6 \sqrt{3}}{8}$
C
$\frac{8 \sqrt{2}}{9}$
D
$\frac{9 \sqrt{3}}{8}$
2
COMEDK 2025 Evening Shift
MCQ (Single Correct Answer)
+1
-0

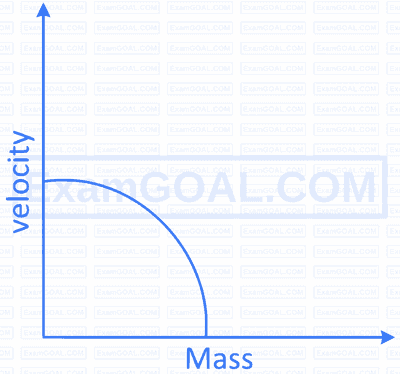

The velocity - mass graph of body with constant linear momentum is represented by the graph:
A
COMEDK 2025 Evening Shift Physics - Center of Mass and Collision Question 1 English Option 1
B
COMEDK 2025 Evening Shift Physics - Center of Mass and Collision Question 1 English Option 2
C
COMEDK 2025 Evening Shift Physics - Center of Mass and Collision Question 1 English Option 3
D
COMEDK 2025 Evening Shift Physics - Center of Mass and Collision Question 1 English Option 4
3
COMEDK 2025 Evening Shift
MCQ (Single Correct Answer)
+1
-0

A student measures the terminal potential difference $V$ of a cell of emf $\varepsilon$ and internal resistance $r$ as a function of the current I flowing through it. Which of the following graphs will give the values of emf $\varepsilon$ and internal resistance $r$ ?

COMEDK 2025 Evening Shift Physics - Current Electricity Question 1 English

A
2
B
1
C
4
D
3
4
COMEDK 2025 Evening Shift
MCQ (Single Correct Answer)
+1
-0
Young's double slit experiment is first done in air and then in a medium of refractive index $\mu$. If the 7 th dark fringe in the medium lies where the 4 th bright fringe is in air, then the value of $\mu$ is :
A
1.654
B
1.389
C
1.875
D
1.768
